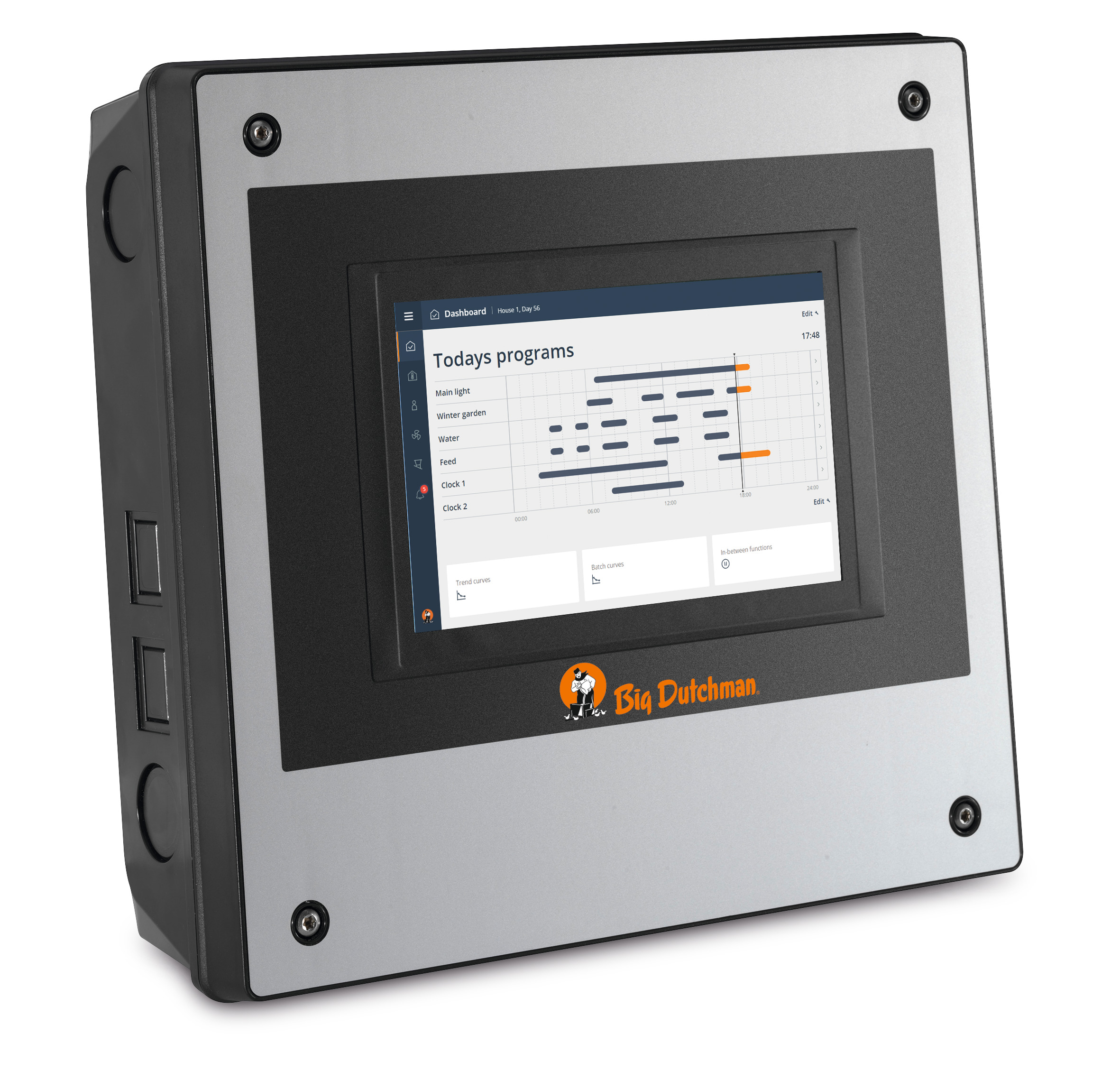

ViperTouch

A complete climate and production control for barns or for free range and organic egg production

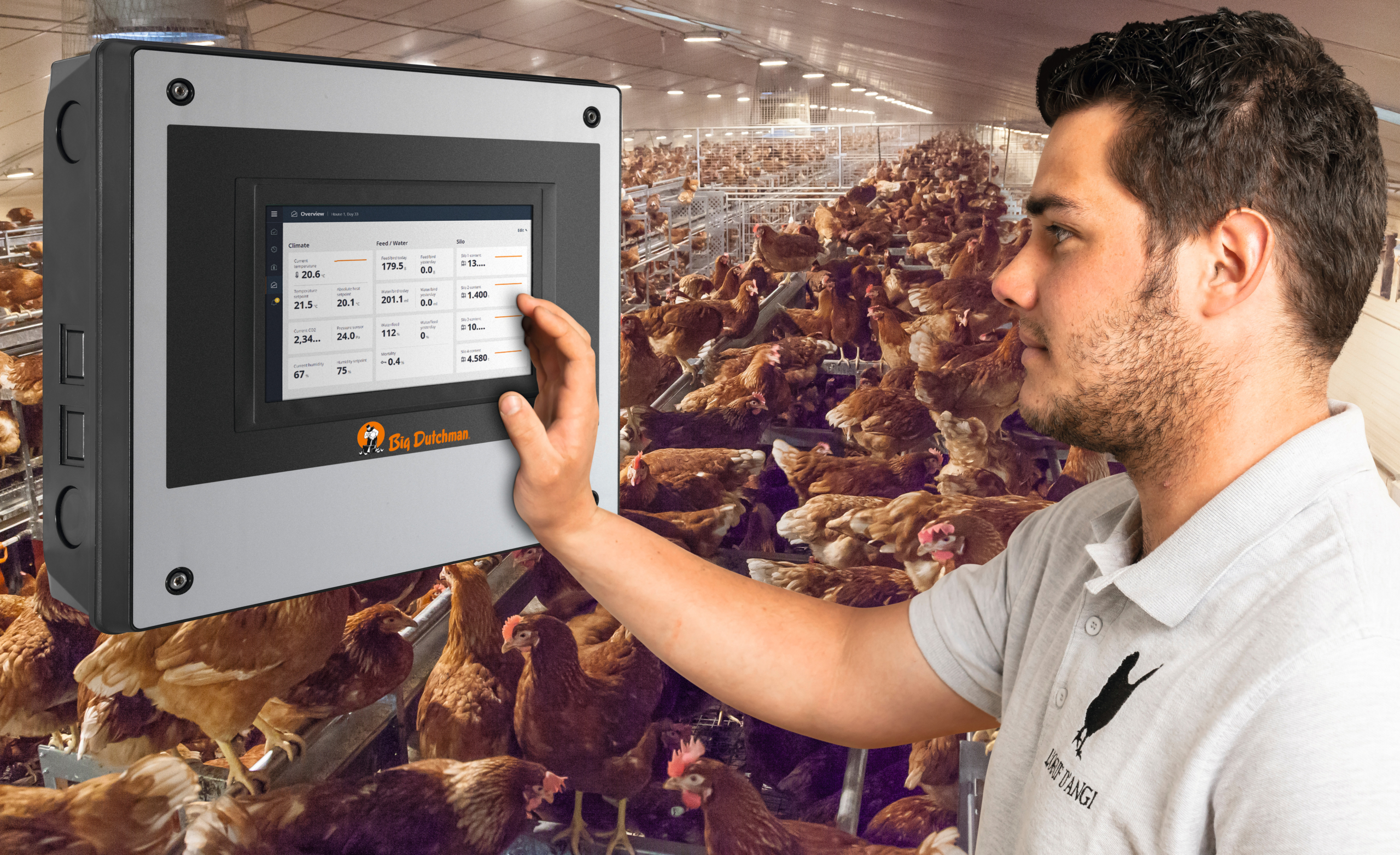

ViperTouch controls and manages all functions of your pullet or layer farm, such as ventilation, feeding, watering, lighting, egg counting, all weighing and even visual controls – providing you the best possible overview and convenient production management. It has a simple operation via touch screen, bringing climate and production control right to your fingertips.

Important Advantages

  • Ideal climate and production computer for layers and pullets – also for free range and organic egg production
  • Simple operation via 7-inch or 10-inch touch screen
  • Choose between 3 climate control modes from simple ‘Basic’ mode to the most advanced ‘Profi’ mode (depending on individual preferences)
  • Modular hardware and easy software updates allow for additional functions and upgrades
  • Password protection on 3 different levels
  • Speaks more than 30 languages – including yours
  • Customize your home screen
  • 5-level data protection
  • Simple alarm management
  • Compatible with BigFarmNet; PC, mobile and web access

Functions for Climate Control

  • Control any type of ventilation strategy – negative pressure or balanced pressure ventilation and CombiTunnel ventilation
  • Climate controls include fresh and exhaust air, heating, cooling, air mixers, emergency opening and alarms
  • Connection of 8 temperature sensors
  • Use sensors for relative humidity, NH3 and CO2, negative pressure and weather station (local weather conditions)
  • Special functions for free range production
  • Various heating, cooling and humidifying controls
  • Active negative pressure control and exhaust air treatment
  • Temperature-controlled emergency opening function
  • Display trend curves

Functions for Production Control

  • Feed consumption, feeding programs, calcium dispensing, bin weighing
  • Water meter and automatic rinsing
  • Light control, light intensity
  • Bird scales and egg counters
  • Bird management, such as mortality

BigFarmNet Compatible

If you use ViperTouch controllers to manage your climate or production, you can incorporate BigFarmNet farm management software onto your controllers. BigFarmNet connects all of your equipment and data together in a central place, making farm management simple and easy. It allows you to control your production from in the barn, on your office PC, or from a mobile device or tablet.
