Feed Bins
For secure feed storage

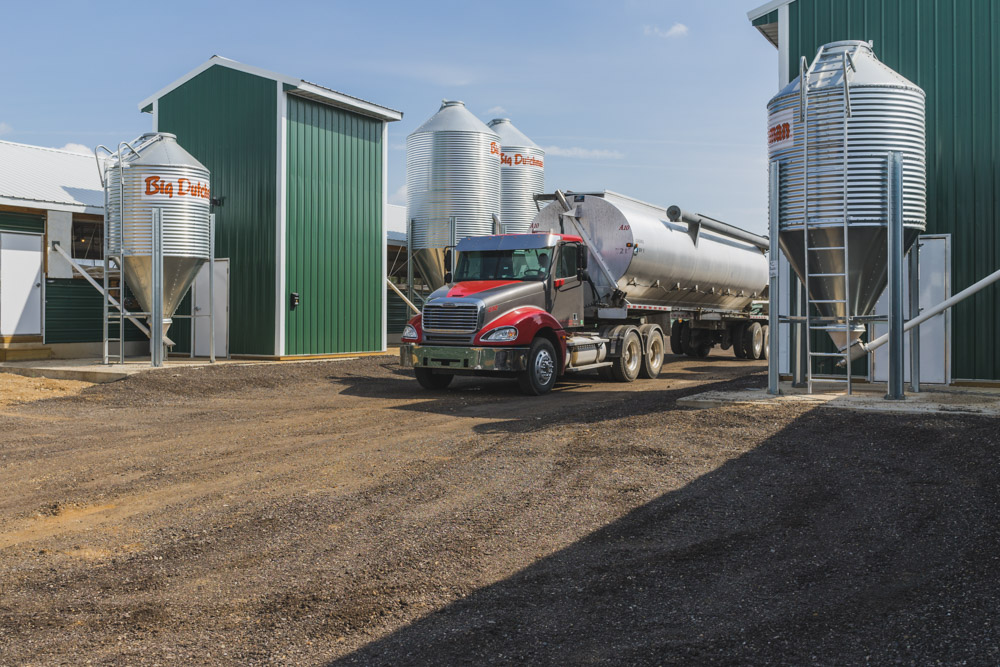

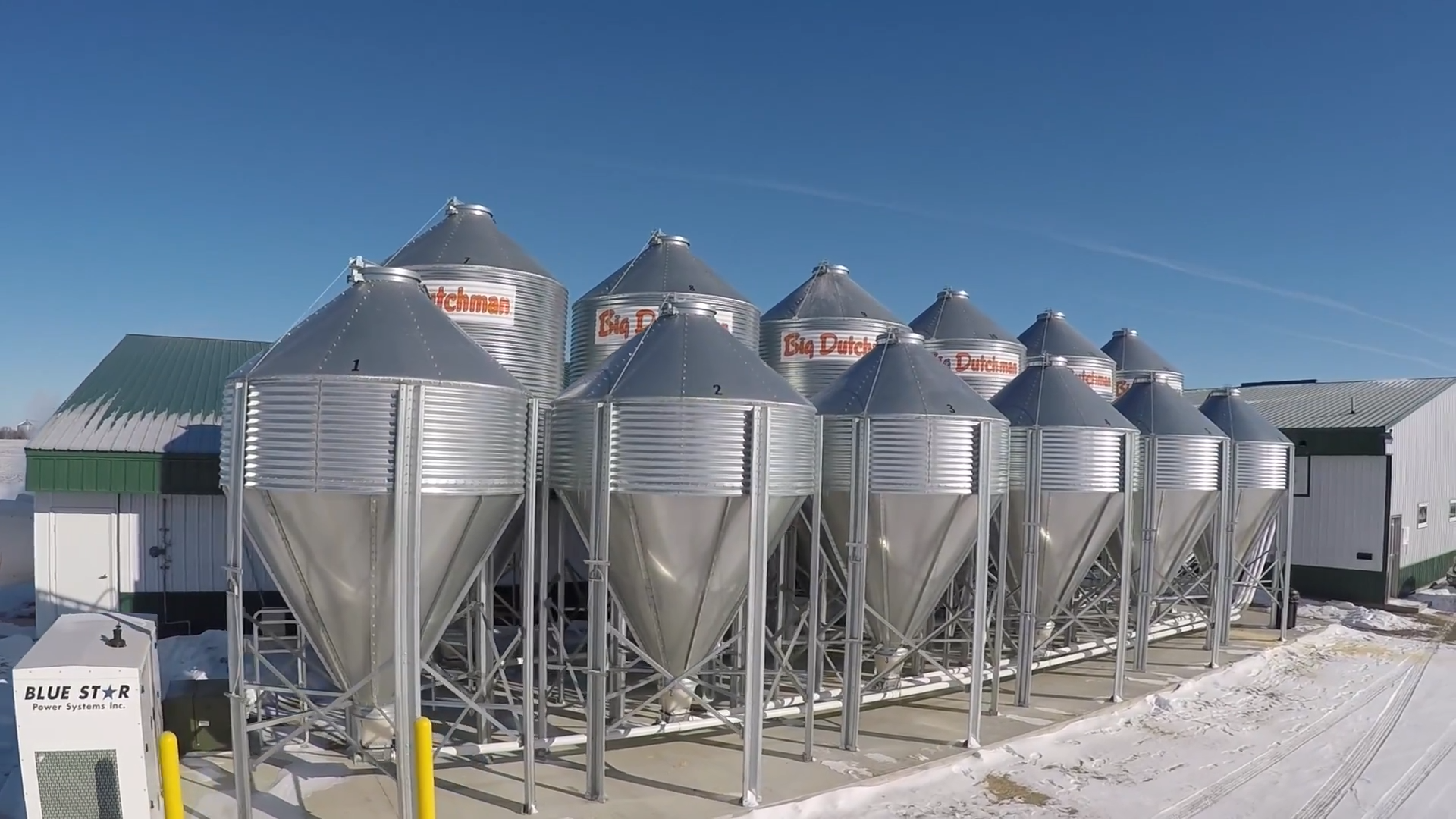

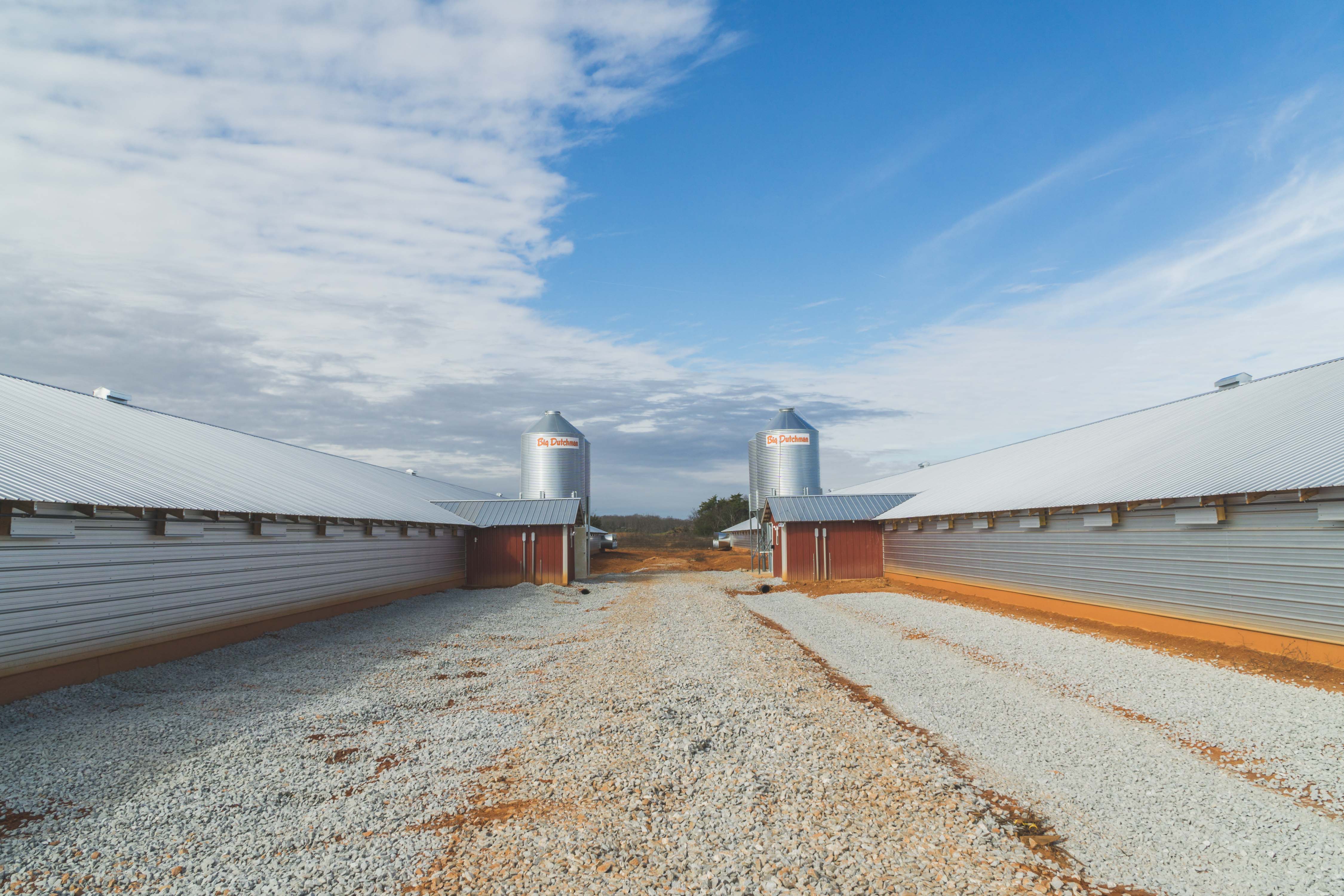

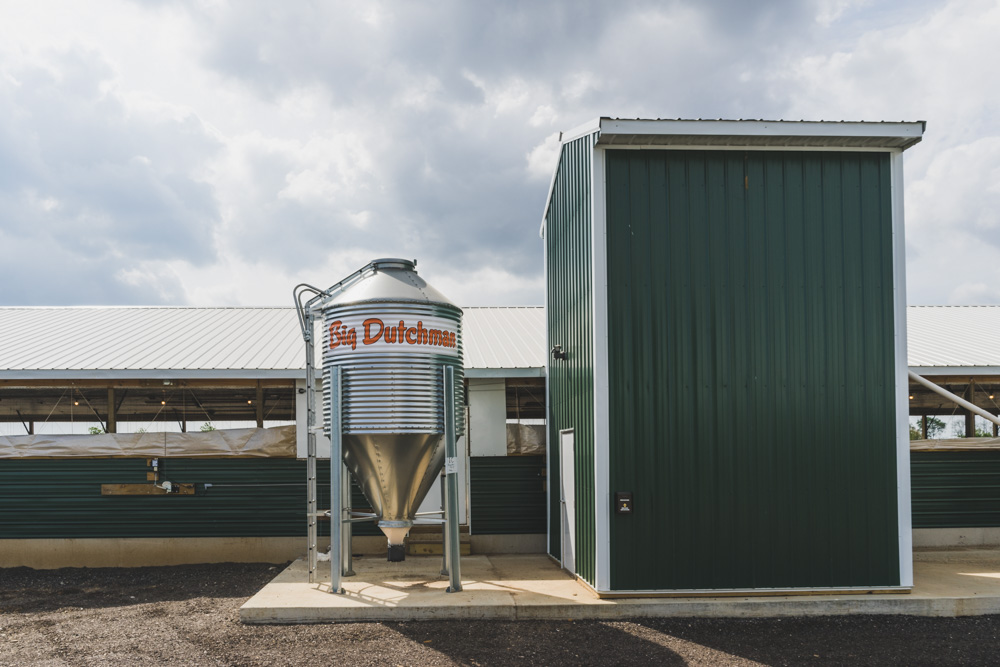

Big Dutchman feed hopper bins are designed to store flowable, noncorrosive material with 50 pound/cubic foot (800.9 kg/m3) bulk maximum density. The feed bins come in 3 standard sizes of 6, 9 and 12 feet in diameter. Each of the 3 sizes is available in 1 to 4 rings. The 12’ bin is also available with 5 or 6 rings.
Important Advantages
- G115 galvanized coating provides a 28% greater protection and longer life than the market standard G90 bins
- Unique lid design opens 180°, keeping it out of the way of potential damage during filling
- Super engineering grade reflective tape at the peak opening allows for easy identification of the fill area at night
- Drip edge at bottom of sidewall sheets minimizes potential moisture down the hopper sheets and into the boot area
- The clearance under the outlet collar is 33.5” – providing plenty of room for unloader accessories
- All bin wall sheets are of corrugated, galvanized steel with 2.66:” (67.56mm) corrugation
- Crimp at room follows the contour of the sidewall sheet ensuring protection from the elements
- Ladder brackets have contours that match the corrugation of the sidewall sheets for maximum strength and safety
- A roof ladder from eave to the peak is standard
- Sealer strip is provided for all roof seams
- Safety cages for ladders are available for the 9′ and 12′ bins
